I0703 - 115kV Polymer Vertical Line Post Insulator w/ o Bracket
Revision 7
Dec 31, 2014

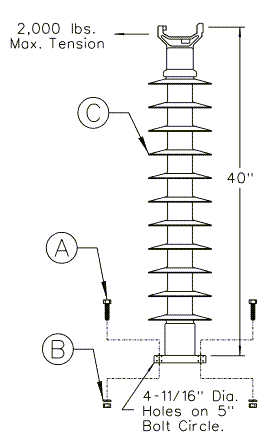

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0703 | A | Bolt, Machine Hex Head 5/8" x 2" | 4 | 102369 |
| B | Washer, Galv Split Lock 11/16” Hole" | 4 | 196445 | |
| C | Insulator, Vertical Post 115kV Polymer w/ o Bracket | 1 | 937774 |
Note:
Vertical post insulator to be used with pole top bracket Compatible Unit R1401.
