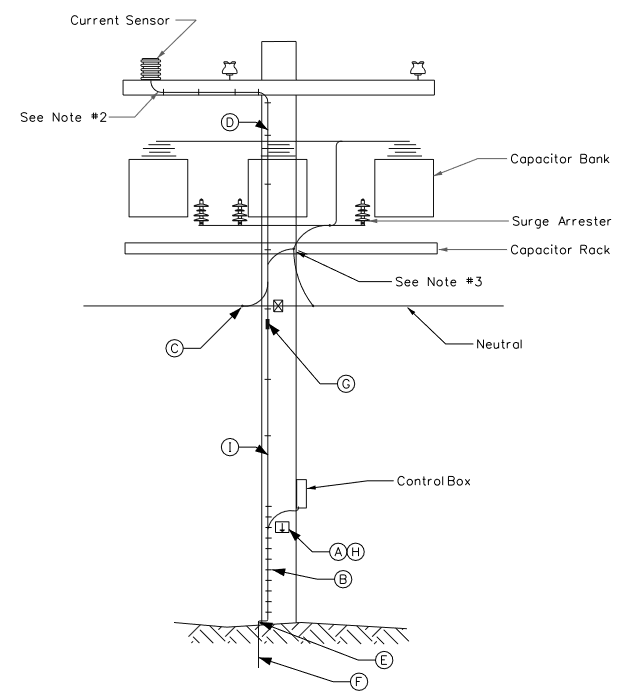

N0272 - Switched Capacitor Bank Ground
Revision 3
Dec 15, 2017
Notes:
- Refer to Assembly No. 12F616 and 12F617 for switched capacitor bank field installation.
- Extend ground to current sensor for VAR controlled switched bank only (Assembly No. 12F616). Current sensor is not required for voltage controlled switched bank (Assembly No. 12F617).
- Connect ground wire to grounding set screw on capacitor bank rack.
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0272 | A | Nail, Cu 2" | 4 | 138025 |
| B | Staple, Galv 1-1/2” | 30 | 139114 | |
| C | Connector, Mini-Wedge | 2 | 212--- | |
| D | Wire, #4 Cu Bare SD Sol | 15' | 848476 | |
| E | Clamp, Ground Rod 5/8” | 1 | 880709 | |
| F | Rod, Ground 5/8” x 8’ | 1 | 902206 | |
| G | Connector, C-Crimp Cu #4 - 1/0 | 1 | 1001655 | |
| H | Tag, Grounding | 1 | 1001802 | |
| I | Wire, CW #10X7ST WP | 35' | 1002626 |
