N0213 - Ground Rod Installation Existing 120V Underground Fiberglass Street Light Pole
Revision 7
Feb 15, 2019
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0110 | A | Wire, #10, Sol Cu THHN Green | 1' | 846660 |
| B | Wire, #4 Cu Bare SD Sol | 10' | 848476 | |
| C | Clamp, Ground Rod 5/8” | 1 | 880709 | |
| D | Rod, Ground 5/8” x 8’ | 1 | 902206 | |
| E | Screw, Self-Drilling SS #8-18 x ¾” | 4 | 1001615 | |
| F | Tag, Grounding | 1 | 1001802 | |
| G | Connector, #4-4/0 Insulation Piercing | 1 | 1002072 |
Notes:

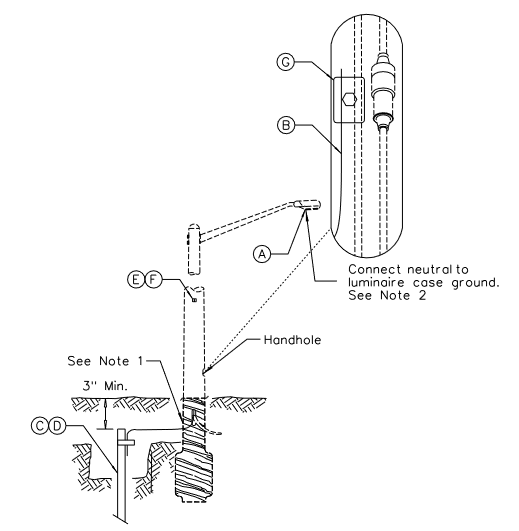

- Install #4 Cu ground wire from cable entrance hole into pole handhole. Connect to street light neutral w/ insulation piercing connector.
- Inside the street light head install a #10 Cu jumper wire between the neutral block and street light case grounding screw (see picture).
- Important! This standard applies to 120V Underground street lights only. 240V Underground street lights must be grounded by extending the #4 Cu ground wire up to the mast arm and attaching per Compatible Unit N0255-N0256.
