N0255-6 - Equipment Grounding

Revision 0
Nov 8, 2006

C.U, Item Description Quantity MID

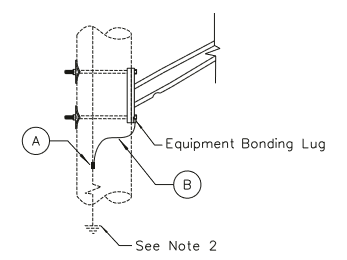

N0255 A Connector, C-Crimp Cu #4-#4 1 211508
  B Wire, #4 Cu Bare SD Sol 3 848476



C.U, Item Description Quantity MID

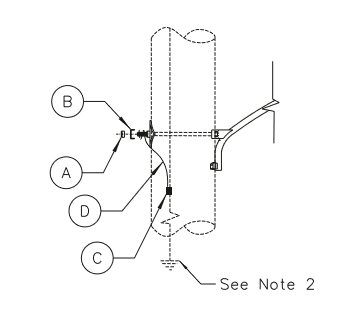

N0256 A Nut, Square 5/8” Galv 1 141317
  B Clip, Bonding 5/8" 1 145658
  C Connector, C-Crimp Cu #4-#4 1 211508
  D Wire, #4 Cu Bare SD Sol 3 848476

Notes:

  1. Use Compatible Unit N0255 for bonding equipment with integral bonding lugs. Use Compatible Unit N0256 for bonding equipment without bonding lugs.
  2. Bonding involves electrically connecting conductive equipment in order to maintain a common electrical potential. For equipment to be effectively grounded then the bond wire must be connected to a grounding electrode. Refer to T&D Guideline 4-15-1.0 and Compatible Units Section N for more information on system grounding and acceptable grounding electrodes.
