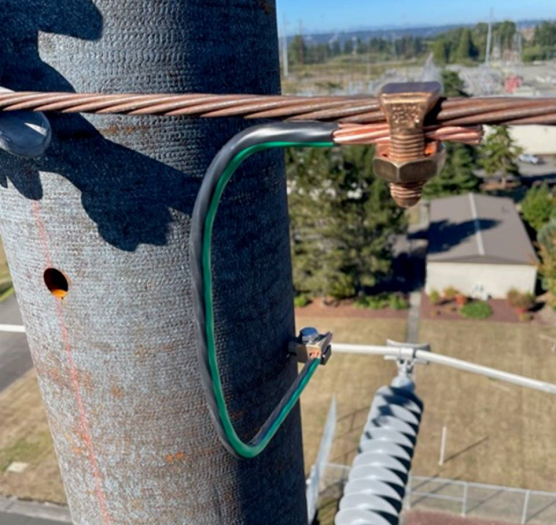

N0130 - Grounding Static Wire to Ductile Iron Poles
Revision 0
Oct 7, 2021
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| A | Bolt, Split #2/0 Cu | 1 | 216409 | |
| B | Clamp, Grounding Equipment #6 Sol. to 1/0 Str. Cu | 1 | 503947 | |
| C | Wire, Copperweld, 7-Strand #10, Jacketed | 3' | 1002626 |
Notes:
- Crew has option to tap 1/2"-13 thread directly into the pole or use appropriate rivnut (R0586-8)
- Grounding neutral wire to pole requires only a grounding clamp.
