R0580-8 - Hollow Wall Anchors & Rivnuts
Revision 3
Sep 26, 2023
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| R0580 | Anchor, Hollow Wall Toggler 1/2”-13 UNC | 1 | 1001602 |
Note: When using hollow wall anchors with brackets such as conduit standoff brackets, use the following materials.
| Description | Qty | MID |
|---|---|---|
| Bolt, SS 1/2” x 3” | 1 | 103383 |
| Washer, Galv Double Coil Spring Lock 1/2” Bolt | 1 | 1001444 |
| Washer, Galv Rd 1-3/8" Flat 9/16" Hole | 1 | 196461 |
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| R0586 | Nut, Rivnut 1/2”-13 UNC Grip Range 0.15”-0.25” | 1 | 1000167 |
| R0587 | Nut, Rivnut 1/2”-13 UNC Grip Range 0.25”-0.35” | 1 | 1002356 |
| R0588 | Nut, Rivnut 1/2”-13 UNC Grip Range 0.35”-0.45” | 1 | 1001478 |
Notes:
- Do not use rivnuts on fiberglass poles. Rivnuts are intended for light-duty attachments on steel poles with wall thickness from 0.15" to 0.45".
- Refer to T&D Guideline 4-5-33.0 for installation instructions.
- Refer to Compatible Unit R0596 - R0598 for complete mounting hardware.
-
Ultimate Tensile Strength: 3,775 lb Working Tensile Strength: 1,887 lb

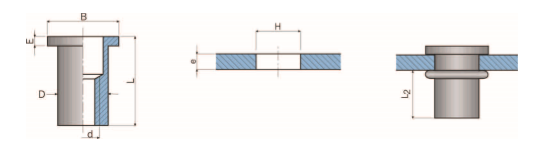

| Constraints | |
|---|---|
| Body Dia. (D) | 0.625" |
| Head Height (E) | 0.085" |
| Head Dia. (B) | 0.906" |
| Grip Range (e) | Hole Size (H) | Overall Length (L) | Installed Length (L2) |
|---|---|---|---|
| 0.150" - 0.250" | 0.626" - 0.635" | 1.116" | 0.630" |
| 0.250" - 0.350" | 0.626" - 0.635" | 1.226" | 0.640" |
| 0.350" - 0.450" | 0.626" - 0.635" | 1.335" | 0.650" |
