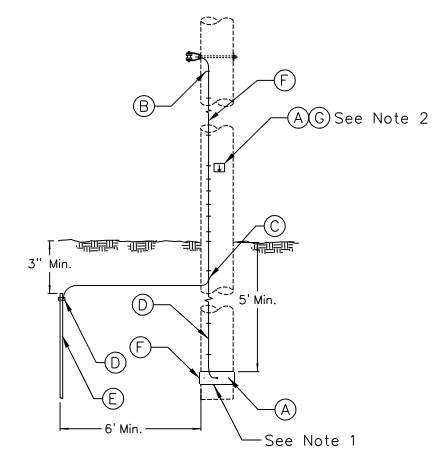

N0104FG - Ground Plate with Ground Rod Installation on Fiberglass Pole

Revision 1
Jan 24 2019



Compatible Unit Item Description Qty Mid
N0101 A Bolt, SS 1/2” x 2” 2 103367
  B Washer, SS Belleville 9/16” Hole 2 191635
  C Connector, C-Crimp Cu #2-#2 1 211524
  D Clamp, Ground Rod 5/8” 2 880709
  E Rod, Ground 5/8” x 8’ 2 902206
  F Screw, Self-Drilling SS #12-14 x 1-¼" 12 1001496
  G Anchor, Hollow Wall “Toggler” ½”-13 UNC 2 1001602
  H Moulding, Ground Plastic Flanged ½”x½”x 8’ 1 1001612
  I Screw, Self-Drilling SS #8-18 x ¾” 32 1001615
  J Plate, Cu Ground 288 in2 1 1001801
  K Tag, Grounding 1 1001802
  L Wire, CW #10X7ST WP 58' 1002626
  M Clip, Wire Lay-in-Lug #6-250 12 1002775

Notes:

  1. Wrap ground plate around pole next to pole butt and attach with 3-1/2" galvanized nails. Ground plate must be installed a minimum of 5' deep to be considered a made electrode suitable for grounding equipment such as transformers. Cover plate with tamped select backfill. If pole is to be backfilled with gravel or rocks bury plate below backfill or install a 5/8" ground rod per Compatible Unit N0101.
  2. Install grounding tag at eye level next to ground wire moulding. This tag signifies the pole is grounded per NESC Article 094.
  3. Place the ground wire on the same side of the pole as the neutral conductor and in the quadrant outside of the climbing space. If the neutral is located in the primary position, extend ground wire moulding up through the supply space and connect to neutral as shown in Detail B.
  4. This Compatible Unit may be used in areas of high soil resistivity of provide reduced ground resistance over a single ground plate or rod.
