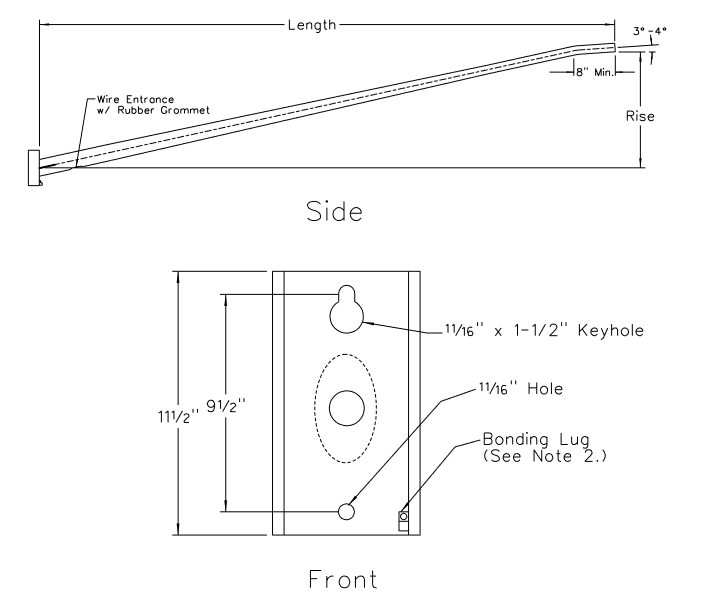

L0500 - 6' Aluminum Mast Arm for Fiberglass Street Light Poles
Revision 5
Jul 6, 2017
| Compatible Unit | Length | Rise | Description | Qty | MID |
|---|---|---|---|---|---|
| L0500 | 6' | 24" | Mast Arm, Street Light 6’ Al, Fiberglass Pole Type | 1 | 1000984 |
| Bolt, Machine 5/8” x 7” Square Head | 2 | 1000995 | |||
| Washer, Galv Sq 2-1/4” Curved 11/16” Hole | 2 | 1000996 | |||
| Washer, Galv Double Coil Spring Lock 5/8” | 2 | 1001443 |
Notes:
- This mast arm is designed for mounting only on the District’s standard fiberglass composite street light poles. For street light installations on transmission and distribution poles refer to Compatible Units L0501 - L0509.
- New mast arms come equipped with a bonding lug. See MID 1001151 for replacement bonding lug.
