L0501-9 - Aluminum Street Light Mast Arms
Revision 8
Apr 19, 2021

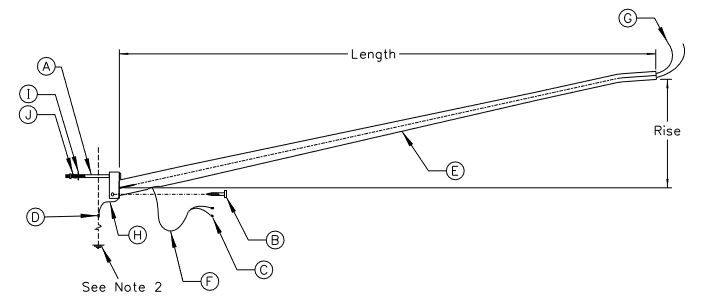

| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0501 | 4' | 24" | A | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| B | Screw, Lag 1/2” x 4” | 2 | 1003315 | |||
| C | Connector, Squeezon Al | 2 | 21---- | |||
| D | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| E | Mast Arm, Street Light 4’ Al | 1 | 692708 | |||
| F | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| G | Wire, #12 Cu THHN 600V Sol Black | 25' | 846727 | |||
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |||
| J | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0502 | 6' | 24" | A | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| B | Screw, Lag 1/2” x 4” | 2 | 1003315 | |||
| C | Connector, Squeezon Al | 2 | 21---- | |||
| D | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| E | Mast Arm, Street Light 6’ Al | 1 | 692716 | |||
| F | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| G | Wire, #12 Cu THHN 600V Sol Black | 28' | 846727 | |||
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |||
| J | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
Notes:
- Mounting hardware supplied with aluminum mast arms (one machine bolt, one washer and two lag screws) is intended for installations on round wood poles. If the mast arm will be installed on steel, concrete, fiberglass or laminated wood poles, specify two machine bolts and two each washer per arm in lieu of of lag screws.
- Mast arms shall be effectively grounded. Refer to T&D Guideline 4-15-1.0.
| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0503 | 8' | 32" | A | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| B | Screw, Lag 1/2” x 4” | 2 | 1003315 | |||
| C | Connector, Squeezon Al | 2 | 21---- | |||
| D | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| E | Mast Arm, Street Light 8’ Al | 1 | 692724 | |||
| F | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| G | Wire, #12 Cu THHN 600V Sol Black | 31' | 846727 | |||
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |||
| J | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0504 | 10' | 32" | A | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| B | Screw, Lag 1/2” x 4” | 2 | 1003315 | |||
| C | Connector, Squeezon Al | 2 | 21---- | |||
| D | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| E | Mast Arm, Street Light 10’ Al | 1 | 692732 | |||
| F | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| G | Wire, #12 Cu THHN 600V Sol Black | 35' | 846727 | |||
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |||
| J | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0505 | 12' | 42" | A | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| B | Screw, Lag 1/2” x 4” | 2 | 1003315 | |||
| C | Connector, Squeezon Al | 2 | 21---- | |||
| D | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| E | Mast Arm, Street Light 12’ Al | 1 | 692740 | |||
| F | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| G | Wire, #12 Cu THHN 600V Sol Black | 39' | 846727 | |||
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |||
| J | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0506 | 14' | 42" | A | Bolt, Machine 5/8” x 14” | 1 | 124206 |
| B | Screw, Lag 1/2” x 4” | 2 | 1003315 | |||
| C | Connector, Squeezon Al | 2 | 21---- | |||
| D | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| E | Mast Arm, Street Light 14’ Al | 1 | 692758 | |||
| F | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| G | Wire, #12 Cu THHN 600V Sol Black | 42' | 846727 | |||
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |||
| J | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |

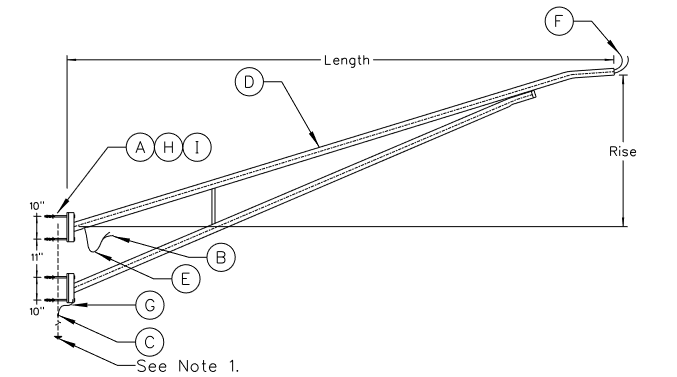

| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0507 | 16' | 52" | A | Bolt, Machine 5/8” x 12” | 4 | 124199 |
| B | Connector, Squeezon Al | 2 | 21---- | |||
| C | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| D | Mast Arm, Street Light 16’ Al | 1 | 692766 | |||
| E | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| F | Wire, #12 Cu THHN 600V Sol Black | 45' | 846727 | |||
| G | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| H | Washer, Galv Sq 3” Curved 13/16” Hole | 4 | 910019 | |||
| I | Washer, Galv Double Coil Spring Lock 5/8” | 4 | 1001443 |
| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0508 | 18' | 61" | A | Bolt, Machine 5/8” x 12” | 4 | 124199 |
| B | Connector, Squeezon Al | 2 | 21---- | |||
| C | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| D | Mast Arm, Street Light 18’ Al | 1 | 692774 | |||
| E | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| F | Wire, #12 Cu THHN 600V Sol Black | 49' | 846727 | |||
| G | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| H | Washer, Galv Sq 3” Curved 13/16” Hole | 4 | 910019 | |||
| I | Washer, Galv Double Coil Spring Lock 5/8” | 4 | 1001443 |
| Compatible Unit | Length | Rise | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| L0509 | 20' | 66" | A | Bolt, Machine 5/8” x 12” | 4 | 124199 |
| B | Connector, Squeezon Al | 2 | 21---- | |||
| C | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |||
| D | Mast Arm, Street Light 20’ Al | 1 | 692782 | |||
| E | Wire, Cover Fiberglass Tubing | 3' | 713330 | |||
| F | Wire, #12 Cu THHN 600V Sol Black | 53' | 846727 | |||
| G | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |||
| H | Washer, Galv Sq 3” Curved 13/16” Hole | 4 | 910019 | |||
| I | Washer, Galv Double Coil Spring Lock 5/8” | 4 | 1001443 |
