I0709 - 230kV Polymer Horizontal Post Insulators
Revision 0
Nov 21, 2013

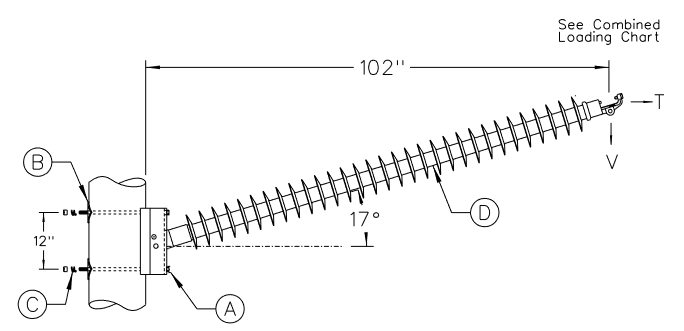

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0709 | A | Bolt, Machine 3/4” x 18” | 2 | 124610 |
| B | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| C | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | |
| D | Insulator, Horizontal Post 230kV Polymer 102” Nominal | 1 | 1003389 |
Note:
For required conductor clamps, refer to Compatible Units R1001 - R1011.
