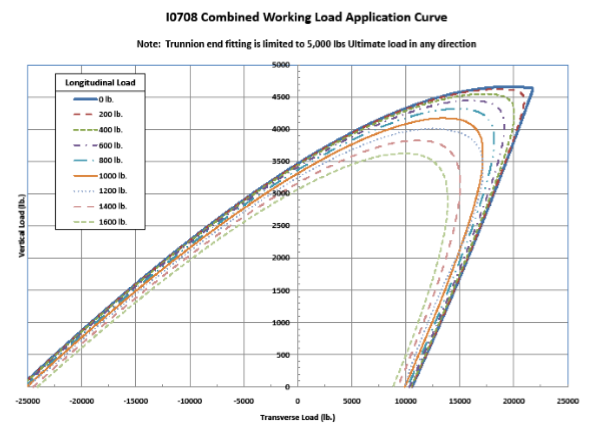

I0708 - 115kV Polymer High-Strength Horizontal Line Post Insulator
Revision 1
Nov 17, 2009
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0708 | A | Bolt, Machine 3/4" x 3" | 4 | 124537 |
| B | Washer, Galv. Split Lock 3/4" | 4 | 196437 | |
| C | Insulator, Horizontal Post 115kV Polymer, High Strength | 1 | 937782 |
Note:
- For required conductor clamps, refer to Compatible Units R1001 - R1011.
