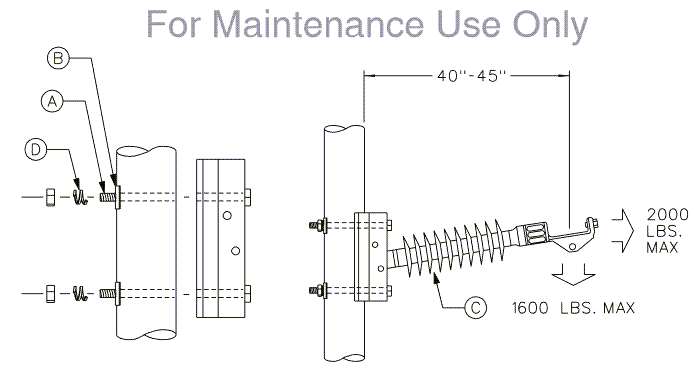

I0705 - "OBSOLETE" 115kV Polymer Horizontal Line Post Insulator (43" Pole Clearance)

Revision 5
Aug 26, 2010

Compatible Unit Item Description Qty MID
I0705 A Bolt, Machine 3/4" x 18" 2 124610
  B Washer, Galv Sq 3" Curved 13/16" Hole 2 910019
  C Insulator, Horizontal Post 115kV Polymer 1 937766
  D Washer, Galv Double Coil Spring Lock 3/4" 2 1001445

Notes:

  1. Do not use this Compatible Unit Back-to-Back, instead refer to Compatible Unit I0706.
  2. For vertical and horizontal loads in excess of those shown above, contact Engineering Standards.
  3. For wood pole installation only.
