I0704 - 115kV Polymer Vertical Line Post Insulator w/ Bracket
Revision 5
Mar 12, 2012
Notes:

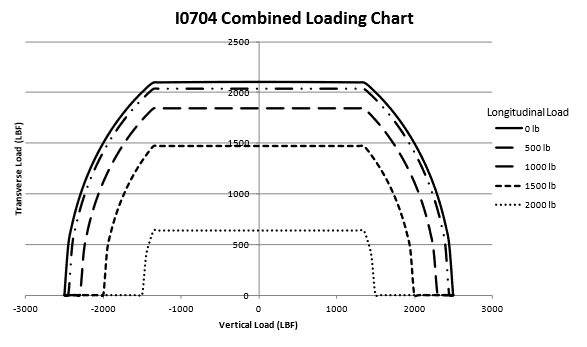

- 2,000 lbs. Maximum Design Cantilever Load
- For required conductor clamps, refer to Compatible Units R1001-R1011.

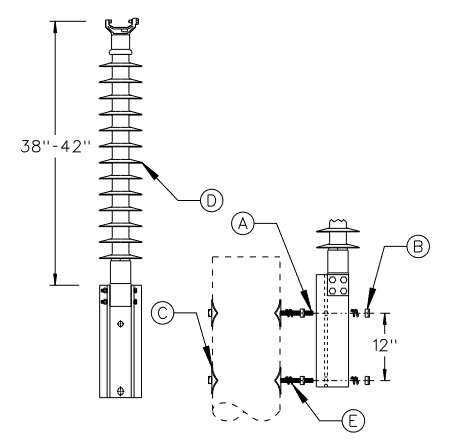

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0704 | A | Bolt, Machine 3/4” x 18” | 2 | 124610 |
| B | Nut, Square 3/4” Galv | 2 | 141325 | |
| C | Washer, Galv Sq 3” Curved 13/16” Hole | 4 | 910019 | |
| D | Insulator, Vertical Post 115kV Polymer | 1 | 937740 | |
| E | Washer, Galv Double Coil Spring Lock 3/4” | 4 | 1001445 |
