I0460 - Anti-Perch Triangle

Revision 2
Feb 12, 2021



Compatible Unit Description Qty MID

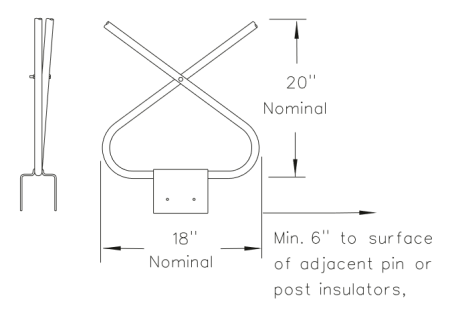

I0460 Guard, Perch Triangle 18" Base x 20” Ht (Nominal) 1 1001421
  Screw, Tapping 1/4” Hex Washer Head #10 x 1” Zinc Plated Steel 4 1001512

Notes:

  1. Perch triangles are for use in discouraging raptors from perching on crossarms.
  2. Secure the triangle to the crossarm using 4 screws (2 on each side of the crossarm) applied through the predrilled holes in the mounting base.

Compatible Unit Description Qty MID

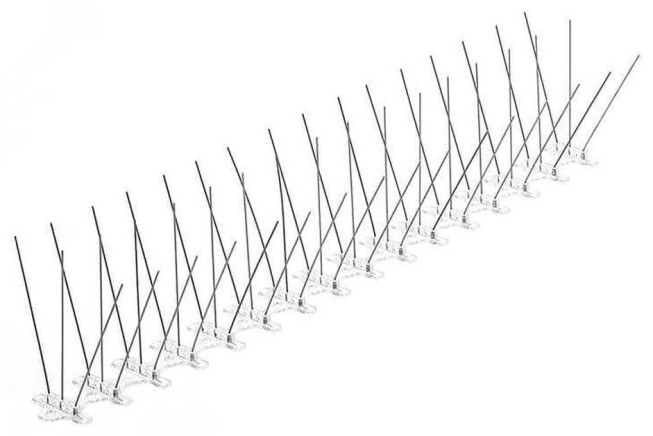

I0460A Guard, Birdspike, Stainless, 5"W, 50'L 1 1002404

Notes:

  1. Birdspike guards are for use in discouraging birds from perching on streetlight arms and other horizontal structures and can be cut to length.
  2. Secure the birdspike to the horizontal surface using a combination of epoxy, 1/4" stainless steel screws and cable ties (R0140-4).
