R1040-4 - Cable Ties and Spacer

Revision 2
Feb 1, 2013

Compatible Unit Item Description Qty MID

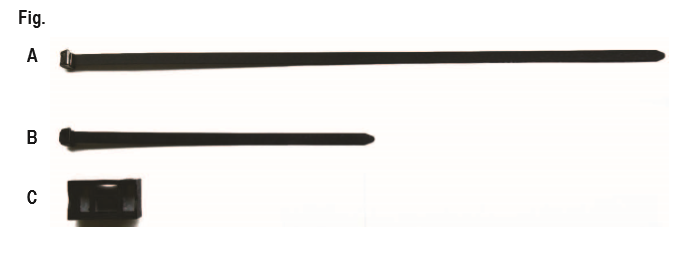

R1040 A Cable Tie, 27"L x 0.5"W Black Acetal, 8" Max. Bundle Dia. 1 874512
R1041 B Cable Tie, 13.5"L x 0.5"W Black Acetal, 3.8" Max. Bundle Dia. 1 1002354
R1042 C Cable Tie Spacer 1 1002355

Compatible Unit Item Description Qty MID

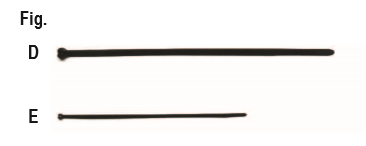

R1043 D Cable Tie, 12"L x 0.275"W Black Nylon, 3" Max. Bundle Dia. 1 1002409
R1044 E Cable Tie, 8"L x 0.141"W Black Nylon, 2" Max. Bundle Dia. 1 891558

Notes:

  1. Black cable ties are suitable for outdoor applications. Black acetal cable ties (Fig. A & B) have an outdoor life expectancy of > 20 years. Black nylon cable ties (Fig. D & E) have an outdoor life expectancy of 7-9 years.
  2. Cable tie spacers (Fig. C) are typically used to secure service or fiber optic cables to messengers or the system neutral. Attach cable to spacers with 13.5" black acetal cable ties (Fig. B).
  3. A cable tie installation tool, MID 1002618, is available to ease the installation of large cable ties.
