I0306-8 - 15kV Deadend Insulators
Revision 5
Nov 06, 2020
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0306 | A | Insulator, DE #1204 | 1 | 938251 |
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0307 | A | Nut, Eye 5/8" | 1 | 893512 |
| B | Insulator, DE #1204 | 1 | 938251 |
Note:
- Cap & pin porcelain suspension insulators (1204) may be used for:
- Deadending neutral conductors on primary crossarms.
- Deadending 336.4 and 795 kcmil neutrals on double circuit structures. See Assembly Unit 12F387 for a typical application.
- For all other 15kV deadend applications use polymer suspension insulators. Refer to Compatible Units I0321-I0329.

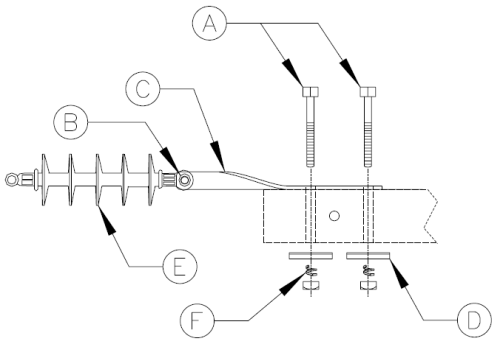

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0308 | A | Bolt, Machine 5/8" x 6" | 2 | 124123 |
| B | Screw, Lag Galv 3/8" x 3" | 1 | 163692 | |
| C | Bracket, End-of-Arm | 1 | 876675 | |
| D | Washer, Galv Sq 2" Flat 11/16" Hole" | 2 | 910267 | |
| E | Insulator, 15kV Polymer Suspension | 1 | 938326 | |
| F | Washer, Galv Double Coil Spring Lock 5/8" | 2 | 1001443 |
