I0392-3 - 15kV Polymer Vise-Top Insulator, Pole-Top Deadend Mounting
Revision 0
Aug 27, 2008

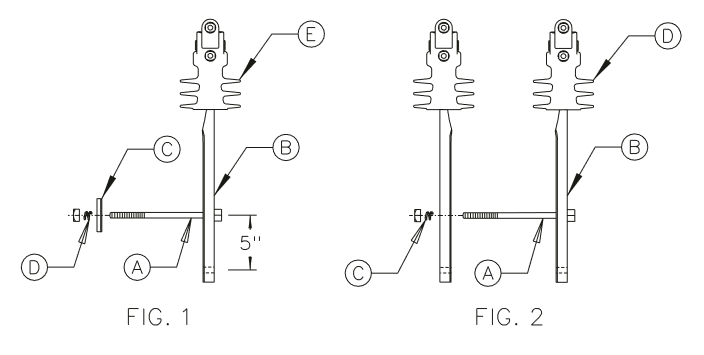

| Compatible Unit | Fig. | Item | Description | Qty | MID |
|---|---|---|---|---|---|
| I0392 | 1 | A | Bolt, Machine 5/8" x 10" | 2 | 124173 |
| B | Pin, Insulator Steel Pole Top | 1 | 896350 | ||
| C | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | ||
| D | Washer, Galv Double Coil Spring Lock 5/8” | 2 | 1001443 | ||
| E | Insulator, 15kV Polymer Vertical Clamp-Top | 1 | 1002030 | ||
| I0393 | 2 | A | Bolt, Machine 5/8" x 10" | 2 | 124173 |
| B | Pin, Insulator Steel Pole Top | 2 | 896350 | ||
| C | Washer, Galv Double Coil Spring Lock 5/8” | 2 | 1001443 | ||
| D | Insulator, 15kV Polymer Vertical Clamp-Top | 2 | 1002030 |
Notes:
- Use Compatible Units I0392 - I0393 for pole top deadending. See Assembly Units 12V111 & 12F311 for application examples. Use Compatible Units I0390-I0391 for tangent and line angle pole top framings.
- Refer to T&D Guideline 4-9-5.0 for polymer vise-top insulator application and installation guidelines.
- Refer to T&D Guideline 4-23-1.0 for allowable line angles.
