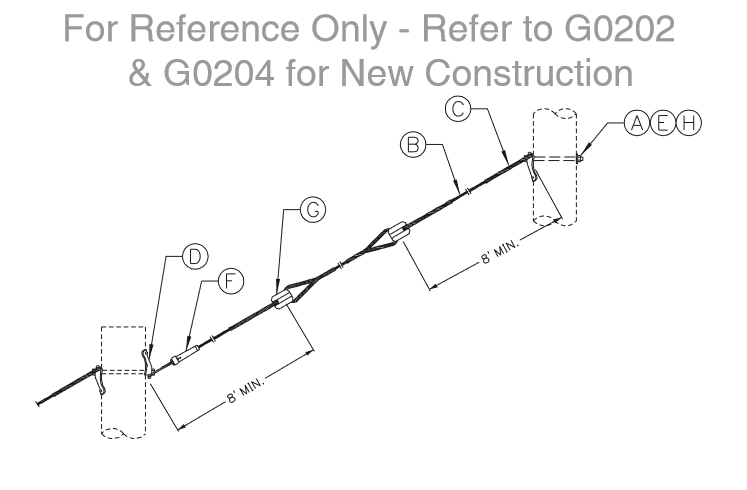

G0201 - OBSOLETE! 3/8" Span Guy, Pole to Stub, 60' Roadway (Light Loads)
Revision 5
Aug 26, 2010
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| G0201 | A | Bolt, Machine 3/4” x 14” | 1 | 124595 |
| B | Wire, Guy EHS 3/8” Galv Stl 7-Str | 75' | 858623 | |
| C | Deadend, Guy Preformed 3/8” | 5 | 880452 | |
| D | Hook, Guy | 2 | 884553 | |
| E | Washer, Galv Sq 4” Curved 15/16” Hole | 1 | 910027 | |
| F | Deadend, Guy Automatic 3/8” | 1 | 923418 | |
| G | Insulator, Strain #2 | 2 | 939118 | |
| H | Washer, Galv Double Coil Spring Lock 3/4” | 1 | 1001445 |
Note:
Maximum allowable guy tension for this Compatible Unit is 4,000 lbs. For guy tensions between 4,001 lbs. and 8,299 lbs. use Compatible Unit G0202.
