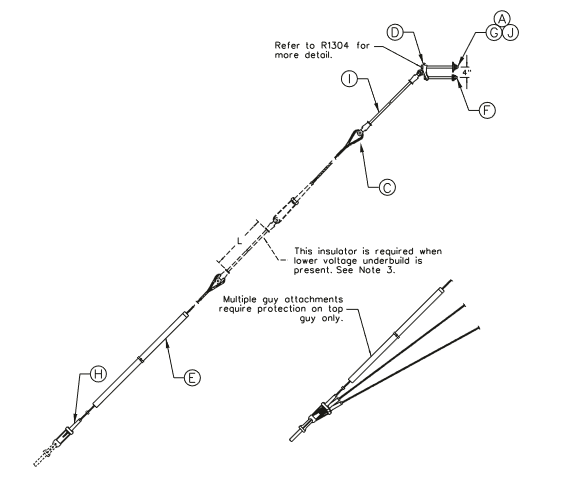

G0301-2 - 3/8" & 1/2" Down Guy, 80' Pole, 1:1 Lead (Medium & Heavy Loads)
Revision 8
May 7, 2026
Notes:
- Use Compatible Unit G0301 for guy tensions between 4,001 lbs. and 8,299 lbs. Use Compatible Unit G0302 for guy tensions between 8,300 lbs. and 14,497 lbs.
- Bolt spacing on multiple guys should not be closer than 6”. Use split bolts (R1115) if two guys are placed within any 2’ pole section in the same vertical plane.
- When a Y-clevis end is desired, add one "figure 8" clevis link and Y-clevis (see items K and L).
| Compatible Unit | Guy Size | Item | Description | Qty | MID |
|---|---|---|---|---|---|
| G0301 | 3/8" | A | Bolt, Machine 3/4” x 16” | 2 | 124602 |
| B | Wire, Guy EHS 3/8” Galv Stl 7-Str | 100' | 858623 | ||
| C | Deadend, Guy Preformed 3/8” | 1 | 880452 | ||
| D | Hook, Combination Guy | 1 | 884579 | ||
| E | Marker, Guy Yellow Plastic 8’ | 1 | 900052 | ||
| F | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | ||
| G | Washer, Cast Sq 4” Curved 15/16” Hole | 1 | 910035 | ||
| H | Deadend, Guy Automatic 3/8” | 1 | 923418 | ||
| I | Insulator, Strain FG 144” | 1 | 939267 | ||
| J | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | ||
| K | Link Clevis, Double Eye (Figure 8) 30,000 UTS | 1 | 9271553 | ||
| L | Clevis, Y-Clevis 30,000 lb UTS | 1 | 9262223 | ||
| G0302 | 1/2" | A | Bolt, Machine 3/4” x 14” | 2 | 124595 |
| B | Wire, Guy EHS 1/2” Galv Stl 7-Str | 100' | 858748 | ||
| C | Deadend, Guy Preformed 1/2” | 1 | 880460 | ||
| D | Hook, Combination Guy | 1 | 884579 | ||
| E | Marker, Guy Yellow Plastic 8’ | 1 | 900052 | ||
| F | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | ||
| G | Washer, Cast Sq 4” Curved 15/16” Hole | 1 | 910035 | ||
| H | Deadend, Guy Automatic 1/2” | 1 | 923426 | ||
| I | Insulator, Strain FG 144” | 1 | 939267 | ||
| J | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | ||
| K | Link Clevis, Double Eye (Figure 8) 30,000 UTS | 1 | 9271553 | ||
| L | Clevis, Y-Clevis 30,000 lb UTS | 1 | 9262223 |
