G0120-1 - Parallel 3/8" and 1/2" Down Guys on Double Offset Pole Eye Plate, 20' Lead on 45' Pole

Revision 2
Aug 4, 2016

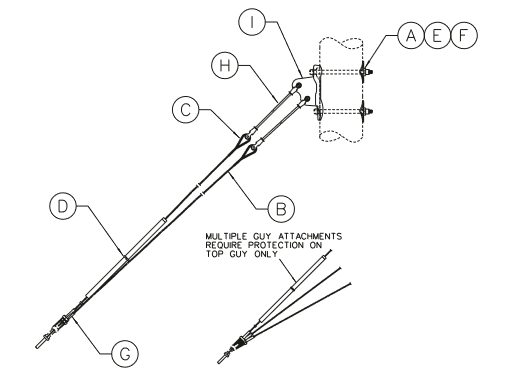

Compatible Unit Guy Size Item Description Qty MID
G0120 1/2" A Bolt, Machine 7/8” x 14” 2 124751
    B Wire, Guy EHS 1/2” Galv Stl 7-Str 112' 858748
    C Deadend, Guy Preformed 1/2” 2 880460
    D Marker, Guy Yellow Plastic 8’ 1 900052
    E Washer, Cast Sq 4” Curved 15/16” Hole 2 910035
    F Washer, Galv Double Coil Spring Lock 7/8" 2 1002132
    G Deadend, Guy Automatic 1/2” 2 923426
    H Insulator, Strain FG 78” 2 939209
    I Plate, Pole Double Offset Eye 1 1001840

Notes:

  1. This unit is intended for attaching parallel ½" down guys to heavily loaded distribution structures with guy tensions as high as 48,420 lb.
  2. All guys installed on poles with energized attachments shall include a guy strain insulator. Refer to T&D Guideline 4-6-1.5 for more information on use and placement of guy strain insulators.

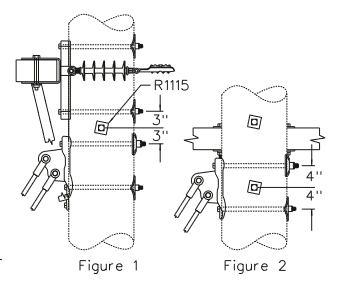

  3. In order to minimize pole bending, pole eye plate should be installed as close to the conductor support as possible. Maintain a 6" minimum spacing between mounting bolts in the same plane and install a split bolt (Compatible Unit R1115) between the pole eye plate and closest conductor support mounting bolt (see Figure 1). Maintain a 4" minimum spacing between perpendicular mounting bolts (see Figure 2).



Compatible Unit Guy Size Item Description Qty MID
G0121 3/8" A Bolt, Machine 7/8” x 14” 2 124751
    B Wire, Guy EHS 3/8” Galv Stl 7-Str 112' 858623
    C Deadend, Guy Preformed 3/8” 1 880452
    D Marker, Guy Yellow Plastic 8’ 1 900052
    E Washer, Cast Sq 4” Curved 15/16” Hole 2 910035
    F Washer, Galv Double Coil Spring Lock 7/8" 2 1002132
    G Deadend, Guy Automatic 3/8” 1 923418
    H Insulator, Strain FG 78” 2 939209
    I Plate, Pole Double Offset Eye 1 1001840
