G0113FG-4FG - 3/8" & 1/2" Down Guy, 20' Lead on 45' Fiberglass Pole (Medium and Heavy Loads)
Revision 2
Aug 17, 2009
Notes:
- This construction is intended for guying medium and heavy loads on fiberglass and light duty steel poles.
- All guys installed on poles with energized attachments shall include a guy strain insulator. Refer to T&D Guideline 4-6-1.5 for more information on use and placement of guy strain insulators.
- Refer to T&D Guideline 4-5-30.0, Fiberglass Distribution Poles, for more information.
- Mounting bands will accommodate poles with a maximum circumference at the attachment point of 54". Each Bolt-A-Band kit contains two mounting bands and installation hardware.
- Use Compatible Unit G0113FG for guy tensions between 4,001 lb and 8,299 lb.
Use Compatible Unit G0114FG for guy tensions between 8,300 lb and 14,497 lb.
Use Compatible Unit G0102FG for guy tensions 4,000 lb and less.

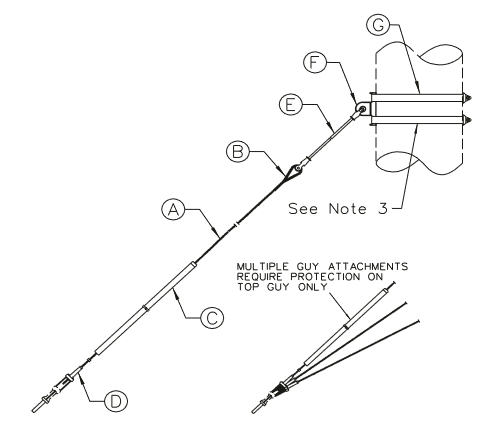

| Compatible Unit | Guy Size | Item | Description | Qty | MID |
|---|---|---|---|---|---|
| G0113FG | 3/8" | A | Wire, Guy EHS 3/8” Galv Stl 7-Str | 56' | 858623 |
| B | Deadend, Guy Preformed 3/8” | 1 | 880452 | ||
| C | Marker, Guy Yellow Plastic 8’ | 1 | 900052 | ||
| D | Deadend, Guy Automatic 3/8” | 1 | 923418 | ||
| E | Insulator, Strain FG 78” | 1 | 939209 | ||
| F | Hook, Bolt-A-Band Eye Attachment | 1 | 1001650 | ||
| G | Banding, SS Bolt-A-Band Kit 1-1/4" x 60" | 1 | 1001651 | ||
| G0114FG | 1/2" | A | Wire, Guy EHS 1/2" Galv Stl 7-Str | 56' | 858748 |
| B | Deadend, Guy Preformed 1/2” | 1 | 880460 | ||
| C | Marker, Guy Yellow Plastic 8’ | 1 | 900052 | ||
| D | Deadend, Guy Automatic 1/2” | 1 | 923426 | ||
| E | Insulator, Strain FG 78” | 1 | 939209 | ||
| F | Hook, Bolt-A-Band Eye Attachment | 1 | 1001650 | ||
| G | Banding, SS Bolt-A-Band Kit 1-1/4" x 60" | 1 | 1001651 |
