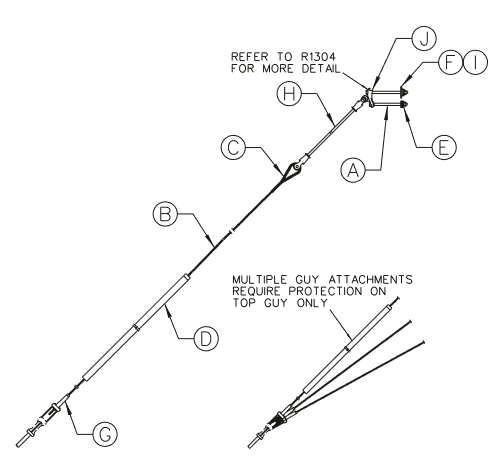

G0102FG - OBSOLETE! 3/8" Down Guy, 20' Lead on 45' Fiberglass Pole (Light Loads)
Revision 3
Jul 10, 2012
| Item | Description | Qty | MID |
|---|---|---|---|
| A | Bolt, Machine 3/4” x 14” | 1 | 124595 |
| B | Wire, Guy EHS 3/8” Galv Stl 7-Str” | 56' | 858623 |
| C | Deadend, Guy Preformed 3/8” | 3 | 880452 |
| D | Hook, Guy | 1 | 884553 |
| E | Marker, Guy Yellow Plastic 8’ | 1 | 900052 |
| F | Washer, Galv Sq 4” Curved 15/16” Hole | 1 | 910027 |
| G | Deadend, Guy Automatic 3/8” | 1 | 923418 |
| H | Insulator, Strain #2 | 1 | 939118 |
| I | Washer, Galv Double Coil Spring Lock 3/4” | 1 | 1001445 |
Notes:
- This construction is intended for guying light loads on fiberglass and light duty steel poles.
- Maximum allowable guy tension for this Compatible Unit is 4,000 lb. Use Compatible Unit G0113FG for guy tensions between 4,001 lb and 8,299 lb. Use Compatible Unit G0114FG for guy tensions between 8,300 lb and 14,497 lb.
- Refer to T&D Guideline 4-5-30.0, Fiberglass Distribution Poles, for additional information.
