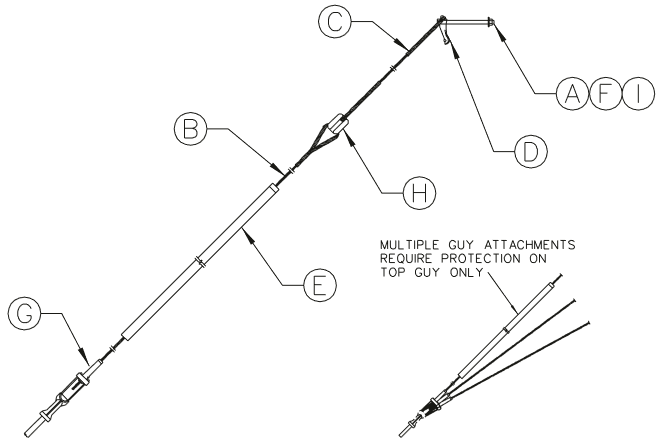

G0102 - Service Pole Down Guy (Light Loads) 3/8" Guy, 20' Lead on 45' Pole
Revision 6
Mar 8, 2006
Notes:
- This down guy may be used on service poles or guy stubs with supply conductors of 300 volts or less and guy tensions of 4,000 lb or less. Use Compatible Unit G0113 for guy tensions between 4,001 lb and 8,299 lb.
Use Compatible Unit G0114 for guy tensions between 8,300 lb and 14,497 lb. - Guy strain insulator (item H) must be installed a minimum of 8 feet above ground when the guy is broken below the insulator.
| Item | Description | Qty | MID |
|---|---|---|---|
| A | Bolt, Machine 3/4” x 14” | 1 | 124595 |
| B | Wire, Guy EHS 3/8” Galv Stl 7-Str” | 56' | 858623 |
| C | Deadend, Guy Preformed 3/8” | 3 | 880452 |
| D | Hook, Guy | 1 | 884553 |
| E | Marker, Guy Yellow Plastic 8’ | 1 | 900052 |
| F | Washer, Galv Sq 4” Curved 15/16” Hole | 1 | 910027 |
| G | Deadend, Guy Automatic 3/8” | 1 | 923418 |
| H | Insulator, Strain #2 | 1 | 939118 |
| I | Washer, Galv Double Coil Spring Lock 3/4” | 1 | 1001445 |
