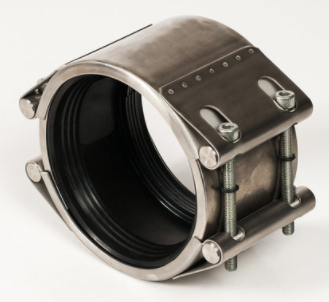

F0414-6 - REPAIR COUPLINGS FOR STEEL/IRON/CONCRETE
Revision 0
Oct 12, 2021
| Compatible Unit | Nominal Size | O.D. | Range | Nom. Length | Max. Crack Width | Allowable Deflection | Working Pressure | Hex Bit Size | Qty | MID |
|---|---|---|---|---|---|---|---|---|---|---|
| F0414 | 4" | 4.50 | 4.33 - 4.57 | 4" | 1.38” | 4° | 435 | 6mm | 1 | 5004206 |
| F0416 | 6" | 6.90" | 6.54 - 7.01" | 8" | 3.94" | 2° | 330 | 10mm | 1 | 5004205 |
Note:
For PVC conduit repair use F0362-76
