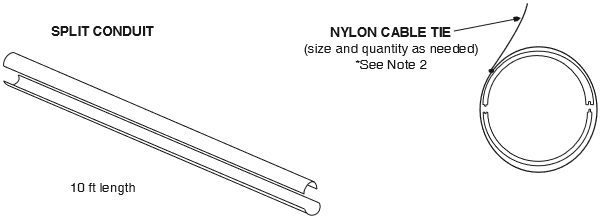

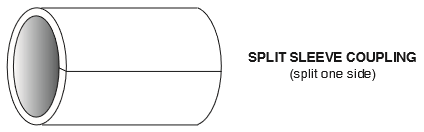

F0362-76 - Split Repair Conduit & Coupling
Revision 3
Oct 24, 2016
| Compatible Unit | IPS Size | O.D. | I.D. | Wall Thickness | Qty | MID |
|---|---|---|---|---|---|---|
| F0362 | 2" | 2.375" | 2.067" | 0.154" | 1 | 240929 |
| F0362A | 2-1/2" | 2.875" | 2.469" | 0.203" | 1 | 1002056 |
| F0363 | 3" | 3.500" | 3.068" | 0.216" | 1 | 240937 |
| F0364 | 4" | 4.500" | 4.026" | 0.237" | 1 | 240945 |
| F0366 | 6" | 6.625" | 6.065" | 0.280" | 1 | 240961 |
| Compatible Unit | IPS Size | Length | Qty | MID |
|---|---|---|---|---|
| F0372 | 2" | 6" | 1 | 250423 |
| F0372A | 2-1/2" | 7" | 1 | 1002057 |
| F0373 | 3" | 7" | 1 | 250431 |
| F0374 | 4" | 8" | 1 | 250449 |
| F0376 | 6" | 10" | 1 | 250465 |
Notes:
