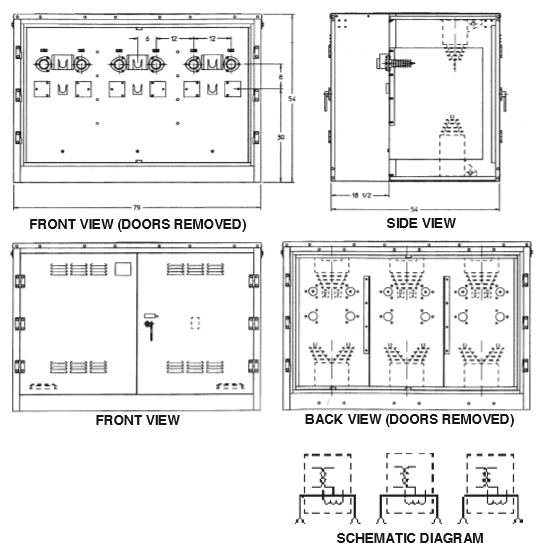

D0110 - Deadfront Pri Metering Cab 200A 15kV 3Ø 1-Line/1-Load

Revision 3
Dec 20, 2016

Description Qty MID
Cabinet, Deadfront Primary Metering, 200A 15kV 3Ø, 1-Line/1-Load 1 1000192
Padlock, P-Key, 5/16" Stl Shackle, 7/8"W x 3/4"H Opening 2 1000750

Notes:

  1. Cable termination side of cabinet (front) is of deadfront construction, metering side (back) is live-front.
  2. Refer to Assembly No. 12U323 for a complete list of the line materials required for installation of padmounted primary metering cabinets.
  3. Important - Contact Metering Department for cost estimates on material and labor for installing primary metering equipment in cabinet.
  4. A list of material to be used by the Metering Department to prepare this cabinet for installation is given on the second page of this standard.
Description Qty MID
Bolt, SS 3/8" x 1" Hex Head w/ Nut 24 103416
Nipple, Chase 1" Malleable Iron Zinc-Plated 1 107749
Condulet, "T", 1" w/ Cover & Gasket Malleable Iron Zinc-Plated 1 108614
Connector, Conduit, Flex 1" Straight Liquid-Tight Malleable Iron Zinc-Plated 12 108713
Washer, SS Rd 1" Flat 7/16" Hole 24 191700
Washer, SS Split Lock 3/8" 24 191718
Tap, Bar Bronze #8-2/0 Cu Sgl Eye Bolt 3 217134
Tap, Bar Bronze #8-2/0 Cu Dbl Eye Bolt (See Note 2) 3 Nonstock
Meterbase, 13-Term Ring Type Sgl Pos w/ Test Switch Provision 1 563529
Switch, Test, 10-Pole, Base Size 3-1/2" x 9-1/2" w/ o Cover 1 563800
VT 7200:120 Single Bushing Outdoor 3 4000178
Transformer, Current (Size to Load) 3 Nonstock
Compound, Oxide Inhibiting 1 784076
Wire, 1/0 Cu WP SD 19-Str 12' 847139
Wire, #6 Cu Bare SD Sol 8' 848484
Wire, #2 Cu Bare SD Sol 12' 10000027
Conduit, Flexible, 1" Liquid-Tite Gray PVC over Galv Steel Core 16' 10000793
Connector, Stud, 3/8" - 16 Thrd to #8 Sol - 2/0 Str Cu Bronze 6 10000907
Connector, Post, Cu, 250-6, 1-Hole (3/8" Bolt) 1-Conductor Setscrew 3 1001463
