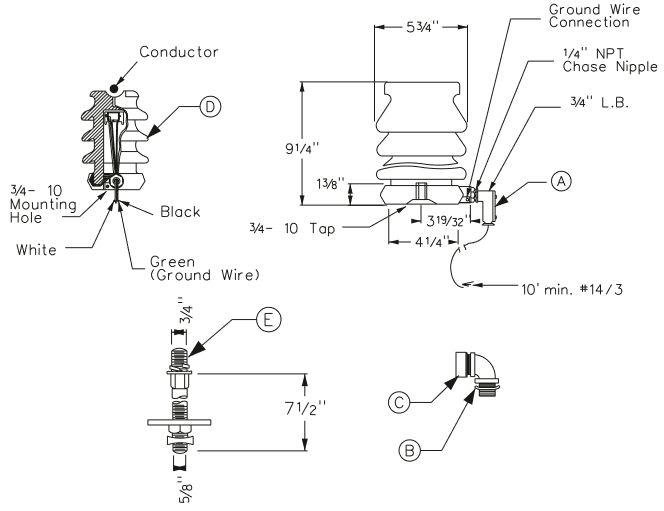

D0725 - Line Post Current Sensor

Revision 3
Oct 26, 2016

Notes:

  1. Refer to Assembly No. 12F616 on application of Current Sensor for switched capacitor bank.
  2. Current Sensor delivers an output potential of 1 volt for every 60 amps line current.
  3. Current Sensor base must be grounded for proper operation.
  4. 90° Cord connector "C" must be wrapped with Heat-shrinkable Tape "A" to prevent animal contact.
Item Description Qty MID
A Tape, Heat shrinkable 2" W x 25' L 1 104753
B Locknut, 3/4" Rigid Conduit Glv 1 109018
C Connector, Cord 3/4" 90° 1 260125
D Current Sensor, 15kV Line Post 1 762121
E Stud, Line Post 7 1/2" 1 896417
