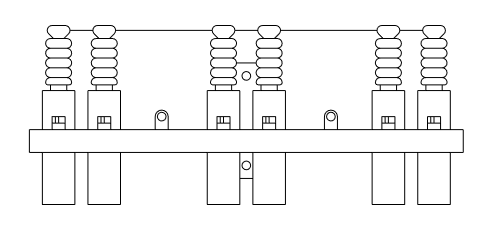

DB0108-DB0112 - Fixed Overhead Capacitor Bank
Revision 1
Apr 7, 2020
| Description | Qty | MID |
|---|---|---|
| 1Ø Fixed Capacitor Tank (Multiple Sizes)1 | - | ------- |
| Wire Tap OH Insulated #4 Soft Drawn Copper Solid | 25' | 5000980 |
| Frame, Capacitor Bank, Pole-Mounted | 1 | 5001201 |
Notes:
- Engineer must specify the Compatible Unit for desired capacitor bank size:
If a capacitor bank size different from those listed above is required, the bank must be custom assembled from individual capacitor tanks.Compatible Unit Description Qty MID DB0108 300 kVAR (3 - 100) 3 646028 DB0109 450 kVAR (3 - 150) 3 646094 DB0110 600 kVAR (6 - 100) 6 646028 DB0111 900 kVAR (6 - 150) 6 646094 DB0111A 1200 kVAR (6 - 200) 6 646101 DB0112 1350 kVAR (9 - 150) 9 646094 - Coordinate with the Apparatus department to have the capacitor bank pre-assembled.
- Refer to Assembly 12F615 for mounting details.
