TAGMAT2 Master Standard for Non-Markable Synthetic Paper Tags and Cards
Click here for a PDF of this Material Standard
Revision 1
Jul 9, 2012
1. Scope

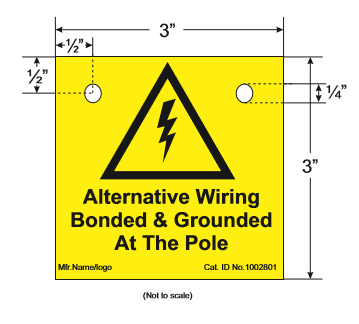

This specification applies to flat-surfaced information cards similiar to the illustrated example. These cards shall be designed for indoor or outdoor applications.
2. Size
Size shall be specified by the District.
3. Holes
Each card shall have holes as specified in the specific Material Standard.
4. Font
Copy legend shall be Helvetica-Narrow Bold, or District approved equivalent.
5. Thickness
Card material shall be 0.01" thick unless otherwise specified by the District.
6. Material
Cards shall be manufactured from tear-resistant Hop Industries Corporation Hop-Syn XT Grade Synthetic Paper, Polyester Film, or a District approved equivalent.
7. Outdoor Durability
Each card shall withstand environmental conditions encountered in the Puget Sound area of the Pacific Northwest for a minimum of 12 months without losing its legibility.
8. Packaging
Packaging requirements shall be given in the specific individual District Material Standards.
9. Identification
The following shall be marked in a District specified location, in black size 8 font: manufacturer's name or logo and District Material ID number for specific tag or card being manufactured. The marking shall not conflict with the intent or legibility of the card.
