890526.1 Padmount Transformer Danger Decal

Click here for a PDF of this Material Standard

1. Scope

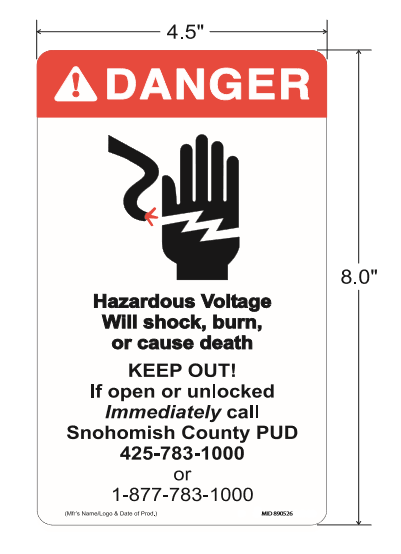

This specification applies to District Material ID 890526 padmount equipment decals as illustrated.

2. Material and Decal Requirements

Refer to District Material Standard DECALMAT5.

3. Size

Decals shall be 8" high x 4.5" wide.

4. Color

The background color for the signal word "DANGER" shall be Safety Red with white reversed out reflective background. The signal word symbol "!" shall be Safety Red with a white reversed out reflective triangular background. The "arc" at the end of the cable next to the hand shall be colored Safety Red.

5. Identification Instructions

Decal shall have manufacturer's name or logo and the date of production clearly marked along the bottom edge of each label. The decal's District Material ID Number 890526 shall also be marked on the bottom edge as depicted below.
