890443.1 Cust Owned Service Labels
Click here for a PDF of this Material Standard
Revision 1
Dec 20, 2010
1. Scope
This specification applies to District equipment decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT4.
3. Material ID Numbers
This specification applies to the following District Material ID Numbers:

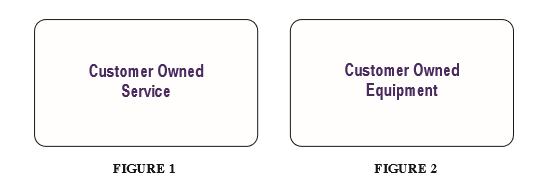

890443 "Customer Owned Service" Label (Fig. 1)
890451 "Customer Owned Equipment" Label (Fig. 2)
4. Size
Decals shall be 1" wide x 2-1/2" long. Legend shall be printed in bold block letters a minimum 1/8" high.
5. Color
UV resistant white background (3M 3690-10) with blue legend. Blue shall be Pantone 273 C or equivalent.
6. Clear Coat
Decal shall have a UV inhibited non-mylar clear coat applied over face of finished product.
