5002469.1 Hot Stick Test Decal
Click here for a PDF of this Material Standard
Revision 0
Nov 20, 2019
1. Scope

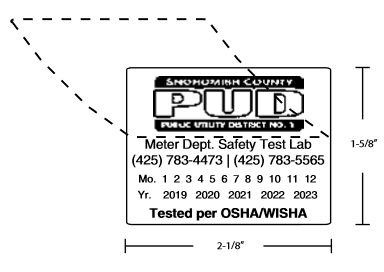

This specification applies to flat-surfaced, Hot Stick Test decal similar to the illustrated example. These decals shall be designed for attachment to live line tools.
2. Material and Tag Requirements
Decal material shall be a 2 mil White Mylar. A clear 2 mil Mylar laminating flap shall be included as shown.
3. Adhesion
Finished decals shall include a pressure sensitive adhesive backing. Decals must be suitable for application without the necessity of additional adhesive coats on the label or application surface and without the use of water, solvents, or heat.
4. Film Flammability
Material shall be self-extinguishing.
5. Size
Decal shall be 1-5/8" high x 2-1/8" wide, with a tolerance of +/- 1/32". Corners shall be a .125" radius.
6. Color
The front of the decal shall be white with black copy text.
7. Font
Font shall be Helvetica-Narrow Bold, or District approved equivalent. Year and Month information text shall be 8 pt font. All other text shall be 10 pt font.
8. Packaging
Finished decals shall be packaged in a way to protect them from moisture and dirt in Zip-Lock type resealable, clear polyethylene bags (50 decals per bag). Each bag shall be marked with the date of production and the manufacturer's name or logo.
9. Proof Drawing
When requested, the supplier of the decal shall provide a proof drawing for approval by the District's Standards Group before proceeding to produce the first order.
