5001190.1 3in Decals for Marking District Overhead Switches
Click here for a PDF of this Material Standard
Revision 0
Mar 12, 2018
1. Scope

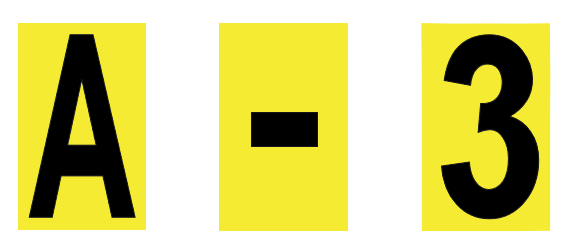

This specification applies to District equipment decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT5.
3. Material ID Numbers
This specification applies to the following District Material ID Numbers:
| 5001191 | Numeric | 0 |
| 5001182 | Numeric | 1 |
| 5001184 | Numeric | 2 |
| 5001185 | Numeric | 3 |
| 5001186 | Numeric | 4 |
| 5001187 | Numeric | 5 |
| 5001188 | Numeric | 6 |
| 5001189 | Numeric | 7 |
| 5001200 | Numeric | 8 |
| 5001202 | Letter | 9 |
| 5001203 | Letter | G |
| 5001190 | Hyphen | - |
4. Size
Decals shall be 3-1/2" high x 2" wide. Letter, number, and fraction labels shall have a border that extends 1/4" beyond copy text on all four sides. Letter and number legend shall be printed 3" high. Hyphen legend shall be centered on label and shall be 5/8" high and 1-1/2" wide. The border shall extend 1/4" beyond copy legend on two sides.
5. Color
UV resistant yellow reflective background (3M 5271 in color) with black reflective lettering.
