385684.1 Recloser Decal

Click here for a PDF of this Material Standard

1. Scope

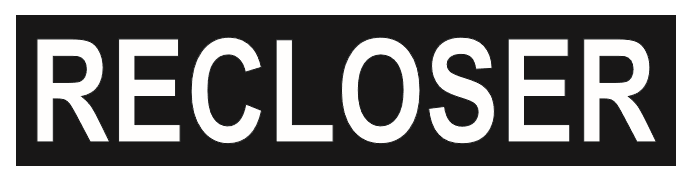

This specification applies to District Material ID 385684 recloser decals as illustrated.

2. Material and Decal Requirements

Refer to District Material Standard DECALMAT5.

3. Size

Decals shall be 1-3/4" high x 8" wide. Letter and number legend shall be printed 1-1/4" high. The border shall extend 1/4" beyond copy text on all four sides.

4. Color

UV resistant black opaque background with white reflective reversed out copy.
