385618.1 480 277V 3Ø Decal
Click here for a PDF of this Material Standard
Revision 1
Dec 20, 2010
1. Scope

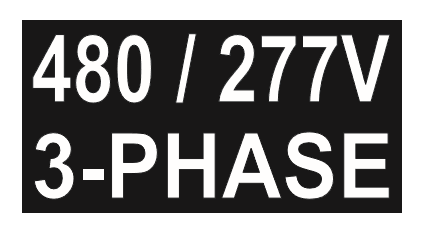

This specification applies to District Material ID 385618 transformer voltage decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT5.
3. Size
Decals shall be 3-1/2" high x 7" wide. Letter and number legend shall be printed 1-1/4" high. The border shall extend 1/4" beyond copy text on all four sides. There shall be 1/2" of space between lines of text.
4. Color
UV resistant black opaque background with white reflective reversed out copy.
