1002428.1 Caution Buried Water Valve Decal
Click here for a PDF of this Material Standard
Revision 1
Dec 20, 2010
1. Scope

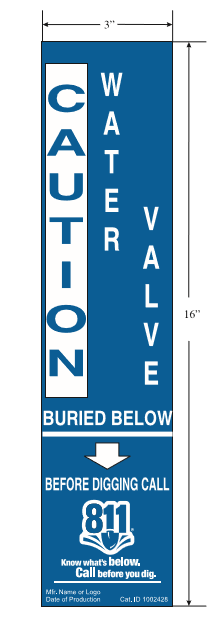

This specification applies to District Material ID's 1002428 caution decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT1.
3. Size
Decal shall be 3" wide x 16" high.
4. Color
UV resistant white opaque copy on blue reflective background (3M 680-75 in color).
5. Identification
The manufacturer’s name or logo and the date of production shall be clearly marked near the bottom left edge of each decal. The District's Material ID number shall be clearly marked near the bottom right edge of each decal. Markings shall be in a small, legible font to avoid detracting from the decal's message. Refer to the illustration for the required locations for these markings.
