1002386.1 Decal — Buried Fiber Optic Cable

Click here for a PDF of this Material Standard

1. Scope

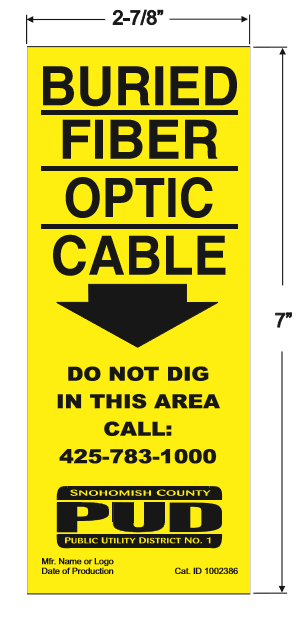

This specification applies to District Material ID's 1002386 decals as illustrated.

2. Material and Decal Requirements

Refer to District Material Standard DECALMAT3.

3. Size

Decal shall be 2-7/8" wide x 7" high.

4. Color

UV resistant black opaque copy on yellow reflective background (3M 3271 in color).

5. Identification

The manufacturer’s name or logo and the date of production shall be clearly marked near the bottom left edge of each decal. The District's Material ID number shall be clearly marked near the bottom right edge of each decal. Markings shall be in a small, legible font to avoid detracting from the decal's message. Refer to the illustration for the required locations for these markings.
