1002373.1 Sign, Caution — Induced Voltage
Click here for a PDF of this Material Standard
Revision 1
Sep 23, 2010
1. Scope

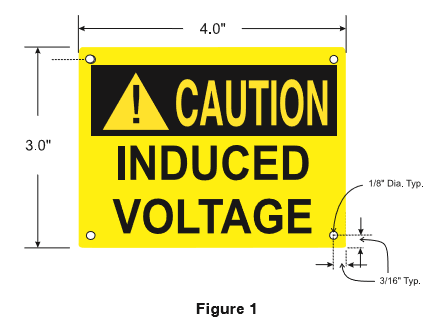

This Specification applies to a flat-surfaced, aluminum-backed, reflective sign as illustrated below in Figure 1.
3. Material ID Number
This Specification applies to the following District Material ID Number: 1002373
3. Size
Sign shall be 3" high x 4” wide. Each sign shall have four 1/8" diameter holes, one in each corner, centered 3/16" from each edge.
4. Font
Copy legend shall be Helvetica-Narrow Bold.
5. Color
Signs shall be UV-resistant yellow reflective background with black copy.
6. Clear Coat
Signs shall be overcoated with a durable clear UV-resistant clear coat if required to achieve maximum life and high reflective qualities. If the materials manufacturer advises that these qualities are achievable without a clear coat, then it will not be required.
7. Material
Signs shall be made of 3M engineering grade Scotchlite materials, or District approved equal, and laminated to an aluminum substrate, 0.025” to 0.040” thick.
8. Outdoor Durability
Seven years minimum, with vertical exterior exposure.
9. Identification
Each box shall be marked with the manufacturer’s name or logo and the date of production.
10. Packaging
Signs shall be packaged in Zip-Lock type resealable, clear polyethylene bags, 5 tags per bag.
