1002295.1 Voltage Identification Tag - 208V
Click here for a PDF of this Material Standard
Revision 0
Nov 2, 2009

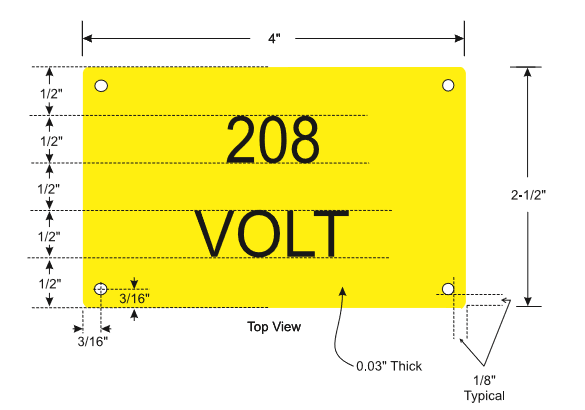

Material: 0.03" Sub-Surface Printed Velvet Textured Non-Adhesive Coated Lexan Plate, With One 1/8" Diameter Hole in Each Corner Spaced 1/8" Equally From Each Side (3/16" to center).
Color: Black UV Resistant Legend on Yellow. (Pantone Spot Color #108CV) UV Resistant Background.
