1002193.1 Voltage Regulator Decal
Click here for a PDF of this Material Standard
Revision 1
Dec 20, 2010
1. Scope

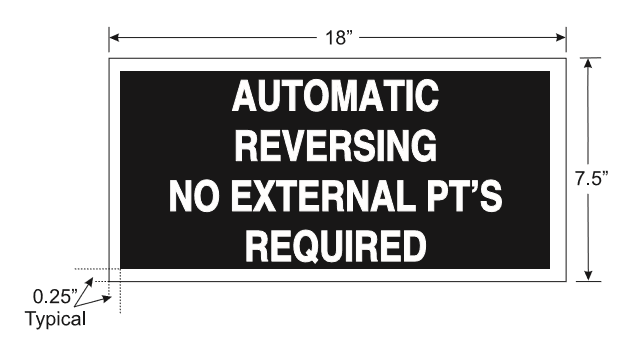

This specification applies to District Material ID's 1002193 decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT5.
3. Size
Labels shall be 7.5" high x 18.00" wide. Letter and number legend shall be printed 1.125" high. The white reflective border shall extend 0.25" beyond copy text on all four sides. There shall be 0.50" of space between lines of text.
4. Color
UV resistant black opaque background with white reflective reversed out copy.
5. Identification
The manufacturer’s name or logo and the date of production shall be clearly marked along the bottom left edge of each decal. The District's Material ID number shall be clearly marked along the bottom right edge of each decal. Markings shall be in a small legible font so as not to detract from the sign's message.
