1001950.1 Substation Hazardous Voltage Above Decal (7in x 10in)

Click here for a PDF of this Material Standard

1. Scope

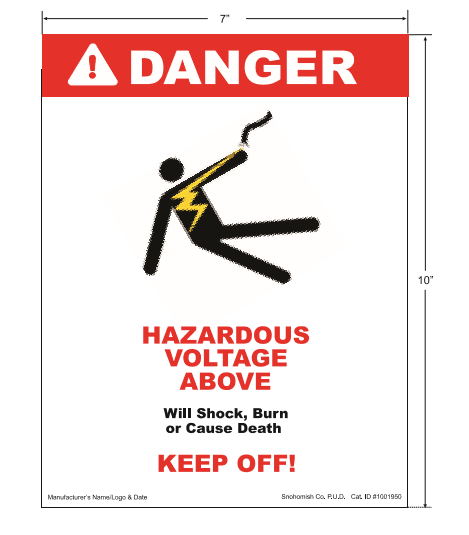

This specification applies to District Material ID's 1001950 substation decals as illustrated.

2. Material and Decal Requirements

Refer to District Material Standard DECALMAT5.

3. Size

Decal shall be 7" wide x 10" high.

4. Color

The decal shall be two colors, all colors shall be UV resistant. The signal word panel shall have white letters on a transparent safety red background with a transparent safety red exclamation mark. The electric shock symbol on the body shall be in white. Text copy "HAZARDOUS VOLTAGE ABOVE" and "KEEP OFF" shall be transparent safety red. All remaining text copy and symbols shall be in black.

5. Identification

The manufacturer’s name or logo and the date of production shall be clearly marked along the bottom left edge of each decal. The District's part number 1001950 shall be clearly marked along the bottom right edge of each decal. Markings shall be in a small legible font so as not to detract from the sign's message. Refer to the illustration for the required locations for those markings.
