1001858.1 Blank Information Card
Click here for a PDF of this Material Standard
Revision 1
Dec 20, 2010
1. Scope

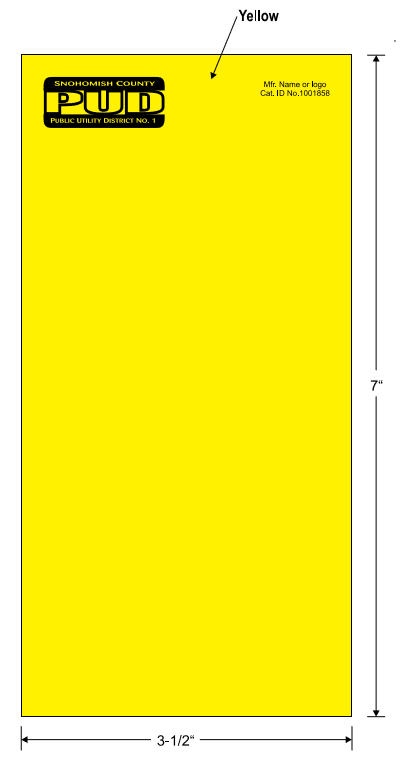

This specification applies to flat-surfaced, blank information cards as illustrated below. The back of each card shall be a solid color. These cards shall be designed for outdoor applications.
2. Material and Tag Requirements
Refer to District Material Standard TAGMAT1.
3. Size
Cards shall be 7” high x 3-1/2” wide, with a tolerance of +/- 1/32”.
4. Color
The face of the card shall be UV resistant Pantone Yellow C 2X with UV resistant black copy. The back of the card shall be colored UV Pantone Yellow C 2X with no copy.
5. Packaging
Cards shall be poly wrapped, 25 cards per bundle. Maximum weight per box/container shall be 50 lbs. Each box/carton must be clearly labeled as to contents and quantity.
6. Material ID Number and Identification
This specification applies to the following District Material ID Number: 1001858, to be marked in the upper right hand corner along with all other required information.
