1001227.1 Transformer Removal
Click here for a PDF of this Material Standard
Revision 4
Sep 1, 2017
1. Scope

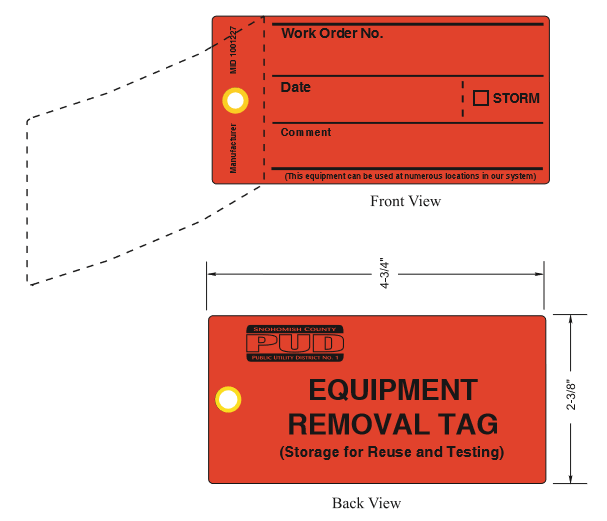

This specification applies to flat-surfaced, transformer removal tags as illustrated. These tags shall be designed for outdoor application.
2. Material and Tag Requirements
Refer to District Material Standard TAGMAT1.
3. Size
Cards shall be 4-3/4" high x 2-3/8" wide, with a tolerance of +/- 1/32".
4. Card Options
Each card shall have the following options: Hole, Flap & Grommet.
5. Color
The tag shall be UV resistant Neon Red (Pantone 805C) with UV resistant black copy.
6. Packaging Instructions
Tags shall be individually packaged in clear Zip-Loc bags, 25 tags per bag.
7. Material ID Number and Identification
This specification applies to the following District Material ID Number: 1001227, to be marked in the upper right hand corner of the card with all other required information placed in the upper left hand corner.
