1000939.1 Transformer kVA Decal
Click here for a PDF of this Material Standard
Revision 2
Dec 20, 2010
1. Scope

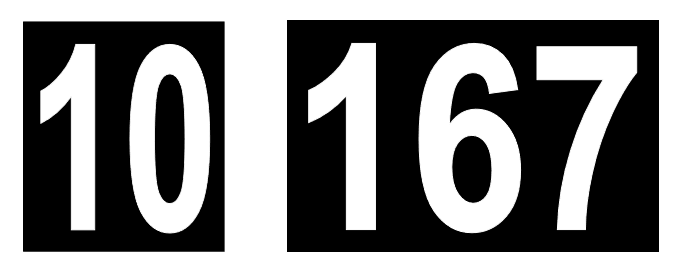

This specification applies to District Material ID 1000939 equipment decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT5.
3. Material ID Numbers
This specification applies to the following District Material ID numbers:
| MID | Legend |
|---|---|
| 1000939 | 10 |
| 1000940 | 15 |
| 1000941 | 25 |
| 1000942 | 37 ½ |
| 1000943 | 50 |
| 1000944 | 75 |
| 1000945 | 100 |
| 1000946 | 167 |
4. Size
Decals shall be 3-1/2" high. Decal width shall be proportional to text width and shall have a border that extends 1/4" beyond copy text on all four sides. Legend shall be printed 3" high.
5. Color
UV resistant black opaque background with white reflective reversed out copy.
