1000687.1 Caution Card
Click here for a PDF of this Material Standard
Revision 6
Oct 18, 2018
1. Scope

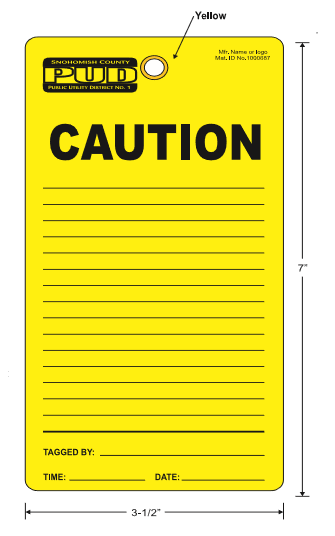

This specification applies to flat-surfaced, safety information cards as illustrated below. The back of each card shall be a solid color. These cards shall be designed for outdoor application in a galvanized holder or directly attached to a treated wood pole.
2. Material and Tag Requirements
Refer to District Material Standard TAGMAT1.
3. Size
Cards shall be 7" high x 3-1/2" wide, with a tolerance of +/- 1/32". Die cut with 0.5" round corners.
4. Color
The face of the card shall be UV resistant Pantone Yellow C 2X with UV resistant black copy. The back of the card shall be colored UV resistant Pantone Yellow C 2X with no copy.
5. Card Options
Cards shall include the following options: Hole, 0.5" Grommet.
6. Packaging Instructions
Cards shall be poly wrapped, 25 cards per bundle. Maximum weight per box/container shall be 50 lbs. Each box/carton must be clearly labeled as to contents and quantity.
7. Material ID Number and Identification
This specification applies to the following District Material ID:
1000687, to be marked in the top right corner of the card, along with all other required identification, as pictured.
