1000222.1 Abnormal Condition Card
Click here for a PDF of this Material Standard
Revision 1
Dec 20, 2010
1. Scope

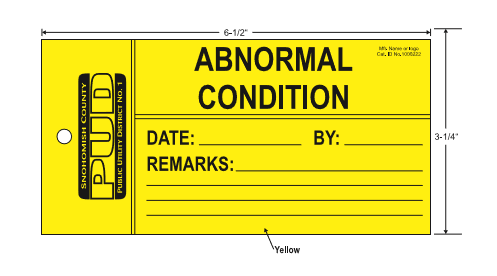

This specification applies to flat-surfaced, safety information cards as illustrated below. These cards shall be designed for outdoor application in a galvanized holder or directly attached to a treated wood pole.
2. Material and Tag Requirements
Refer to District Material Standard TAGMAT1.
3. Size
Cards shall be 3-1/4” high x 6-1/2” wide, with a tolerance of +/- 1/32”.
4. Color
The face of the card shall be UV resistant Pantone Yellow C 2X with UV resistant black copy. The back of the card shall be colored UV resistant Pantone Yellow C 2X with no copy.
5. Card Options
The card shall include the following options: Hole.
6. Packaging Instructions
Cards shall be poly wrapped, 25 cards per bundle. Maximum weight per box/container shall be 50 lbs. Each box/carton shall be clearly labeled as to contents and quantity.
7. Material ID Number and Identification
This specification applies to the following District Material ID: 1000222, to be marked in the top right corner of the card, along with all other required identification, as pictured.
