1000221.1 Trouble Card
Click here for a PDF of this Material Standard
Revision 2
Apr 26, 2018
1. Scope

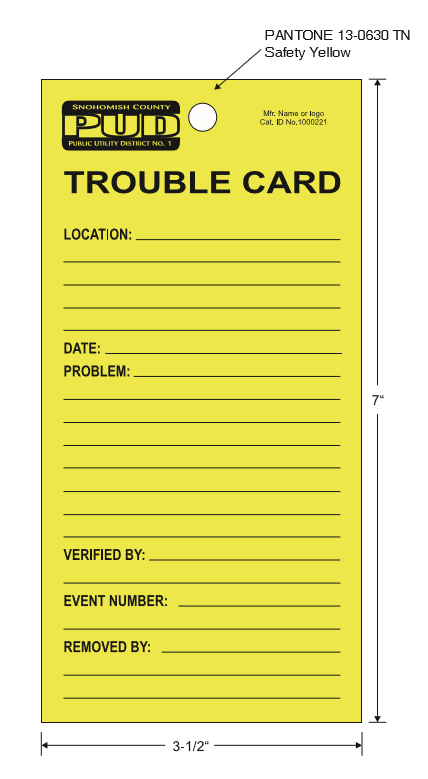

This specification applies to flat-surfaced, safety information cards as illustrated. These cards shall be designed for outdoor application in a galvanized holder or directly attacehd to a treated wood pole.
2. Material and Tag Requirements
Refer to District Material Standard TAGMAT1.
3. Size
Cards shall be 7” high x 3-1/2” wide, with a tolerance of +/- 1/32”.
4. Color
The face of the card shall be PANTONE 13-0630 TN with UV resistant black copy. The back of the card shall be colored PANTONE 13-0630 TN with no copy.
5. Card Options
The card shall include the following options: Hole.
6. Packaging Instructions
Cards shall be poly wrapped, 25 cards per bundle. Maximum weight per box/container shall be 50 lbs. Each box/carton shall be clearly labeled as to contents and quantity.
7. Material ID Number and Identification
This specification applies to the following District Material ID: 1000221, to be marked in the top right corner of the card, along with all other required identification, as pictured.
