1000217.1 Assessment Card
Click here for a PDF of this Material Standard
Revision 6
Nov 23, 2015
1. Scope

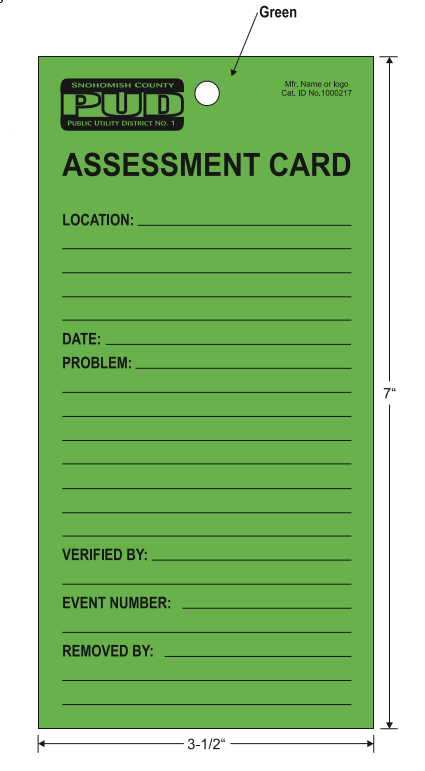

This specification applies to flat-surfaced, safety information cards as illustrated. These cards shall be designed for outdoor application in a galvanized holder or directly attached to a treated wood pole.
2. Material and Tag Requirements
Refer to District Material Standard TAGMAT1.
3. Size
Cards shall be 7” high x 3-1/2” wide, with a tolerance of +/- 1/32”. Cards shall be 0.01" thick.
4. Color
The card shall be UV resistant green, Pantone 375C, with UV resistant black copy. The back of the card shall be colored UV resistant green, Pantone 375C, with no copy. The "C" in 375C stands for "coated" stock, an outdoor material.
5. Card Options
The card shall include the following options: Hole.
6. Packaging Instructions
Cards shall be poly wrapped, 25 cards per bundle. Maximum weight per box/container shall be 50 lbs. Each box/carton shall be clearly labeled as to contents and quantity.
7. Material ID Number and Identification
This specification applies to the following District Material ID 1000217, to be marked in the top right corner of the card, along with all other required identification, as pictured.
