1000212.1 Non-PCB Label
Click here for a PDF of this Material Standard
Revision 2
Dec 20, 2010
1. Scope
This specification applies to District Material ID 1000212 equipment decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT5.
3. Size

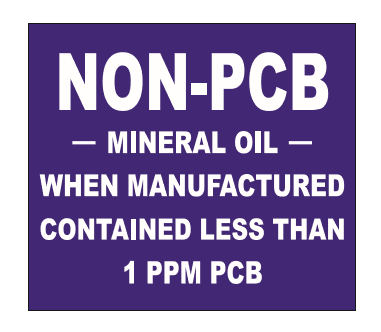

Decals shall be 2-1/2" high x 3-1/2" wide with a tolerance of +/- 1/16". Placement of the text, letter size, line spacing, and borders shall be as shown in Figure 1. The letters in the term "NON-PCB" shall be 1/2" high. The letters in the remaining words shall be 3/16" high. The top and bottom borders shall be 1/4" wide and the side borders shall be 3/16" wide. The spacing between lines shall be 3/16".
4. Color
UV resistant blue opaque background, Pantone Color 293C (Reference: Pantone Color Formula Guide), with white reflective reversed out copy.
