1000127.1 Check Fuses Label
Click here for a PDF of this Material Standard
Revision 2
Dec 20, 2010
1. Scope

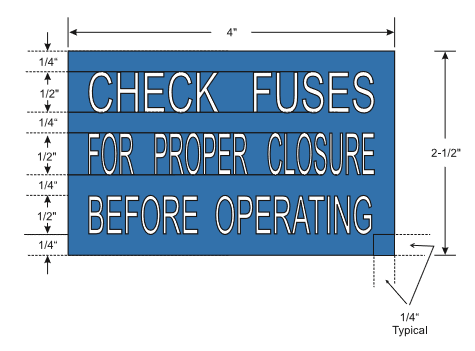

This specification applies to District Material ID 1000127 equipment decals as illustrated.
2. Material and Decal Requirements
Refer to District Material Standard DECALMAT5.
3. Size
Labels shall be 2-1/2" high x 4" wide. Text legend shall be printed 1/2" high. The border shall extend beyond 1/4" beyond copy text on all four sides. There shall be 1/2" of space between lines of text.
4. Color
UV resistant blue (Pantone Color Formula Guide #285C) opaque background with white reversed out copy.
